Washing & Recovery Helix® Cyclone

Cleaner Sand, Less Babysitting

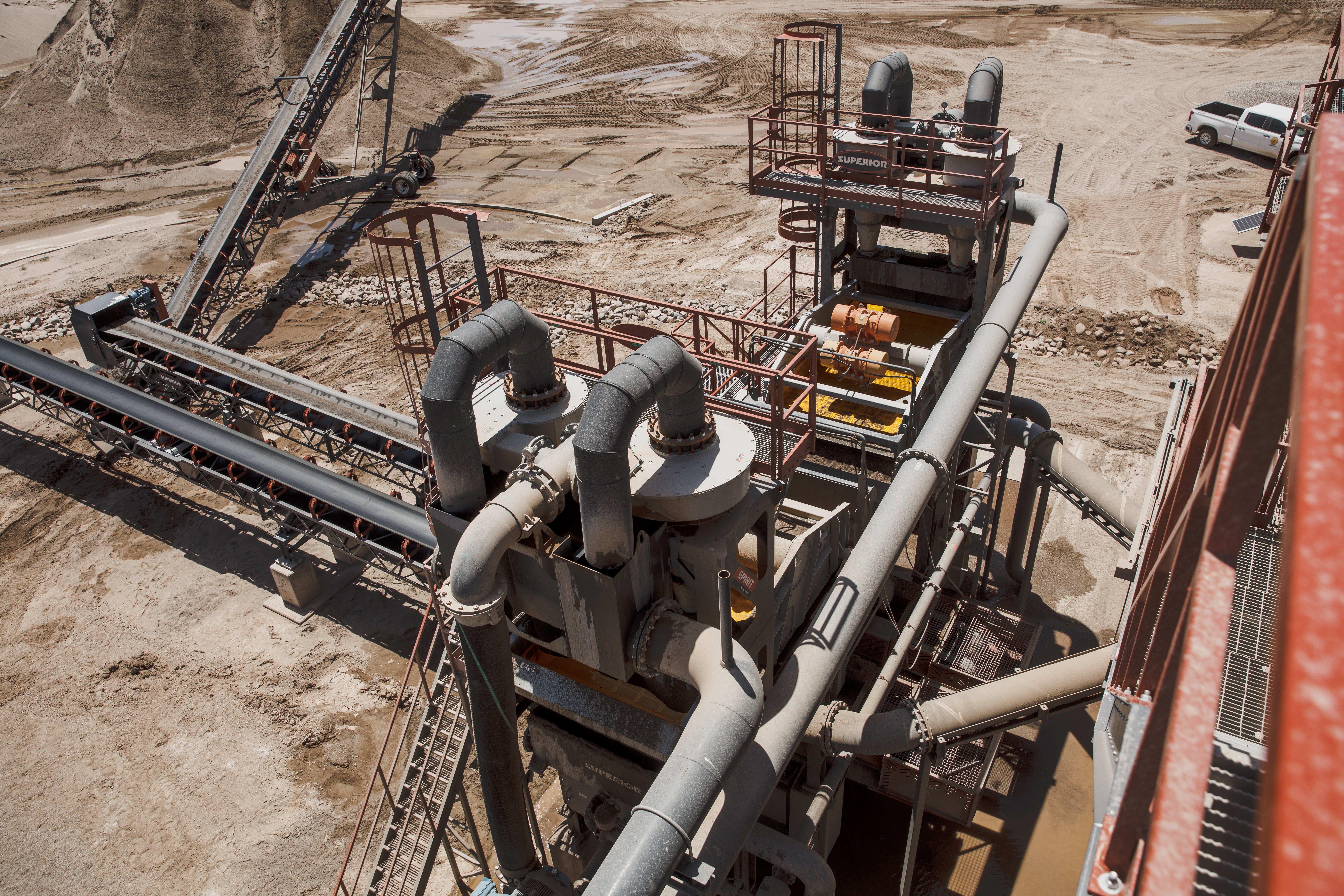

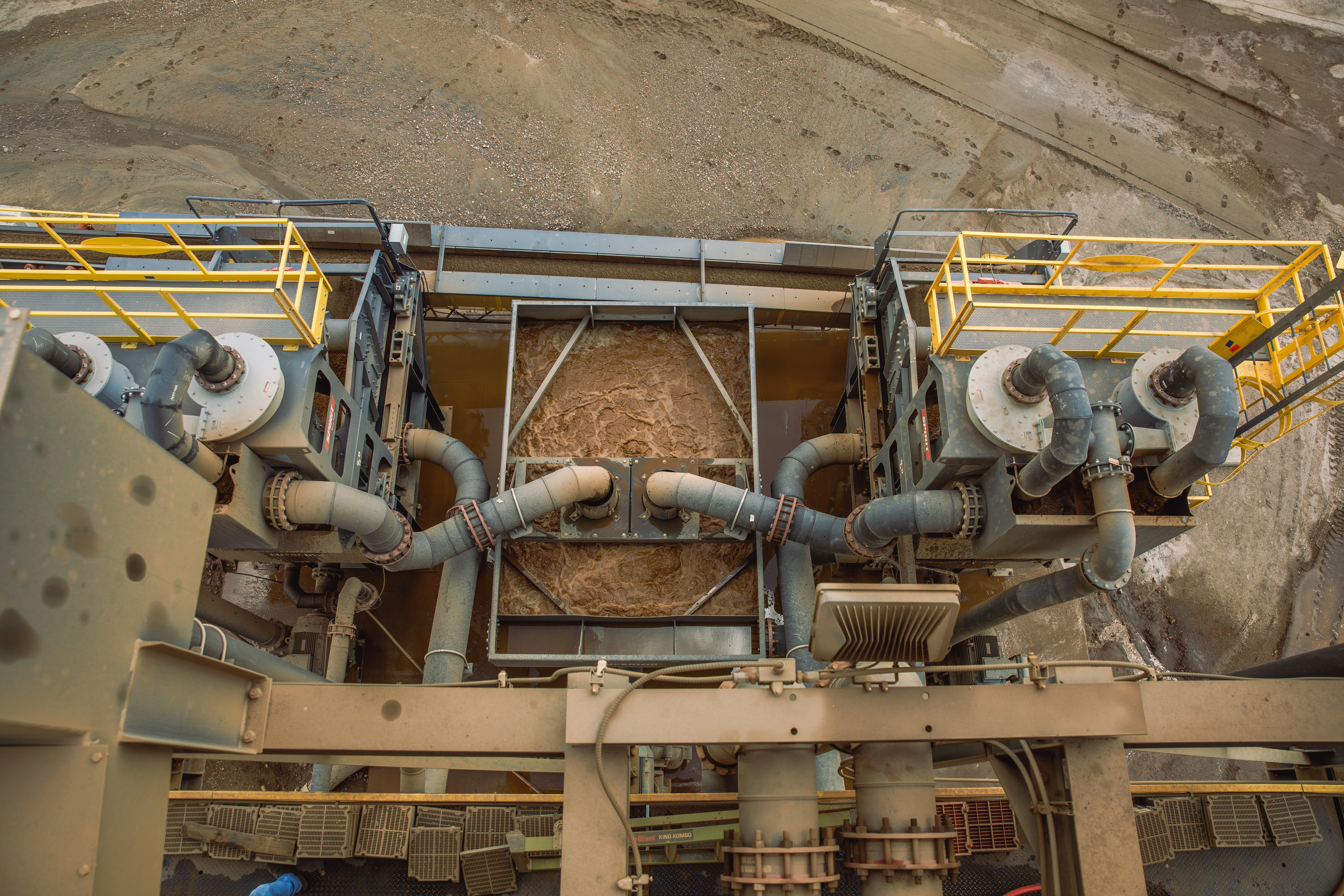

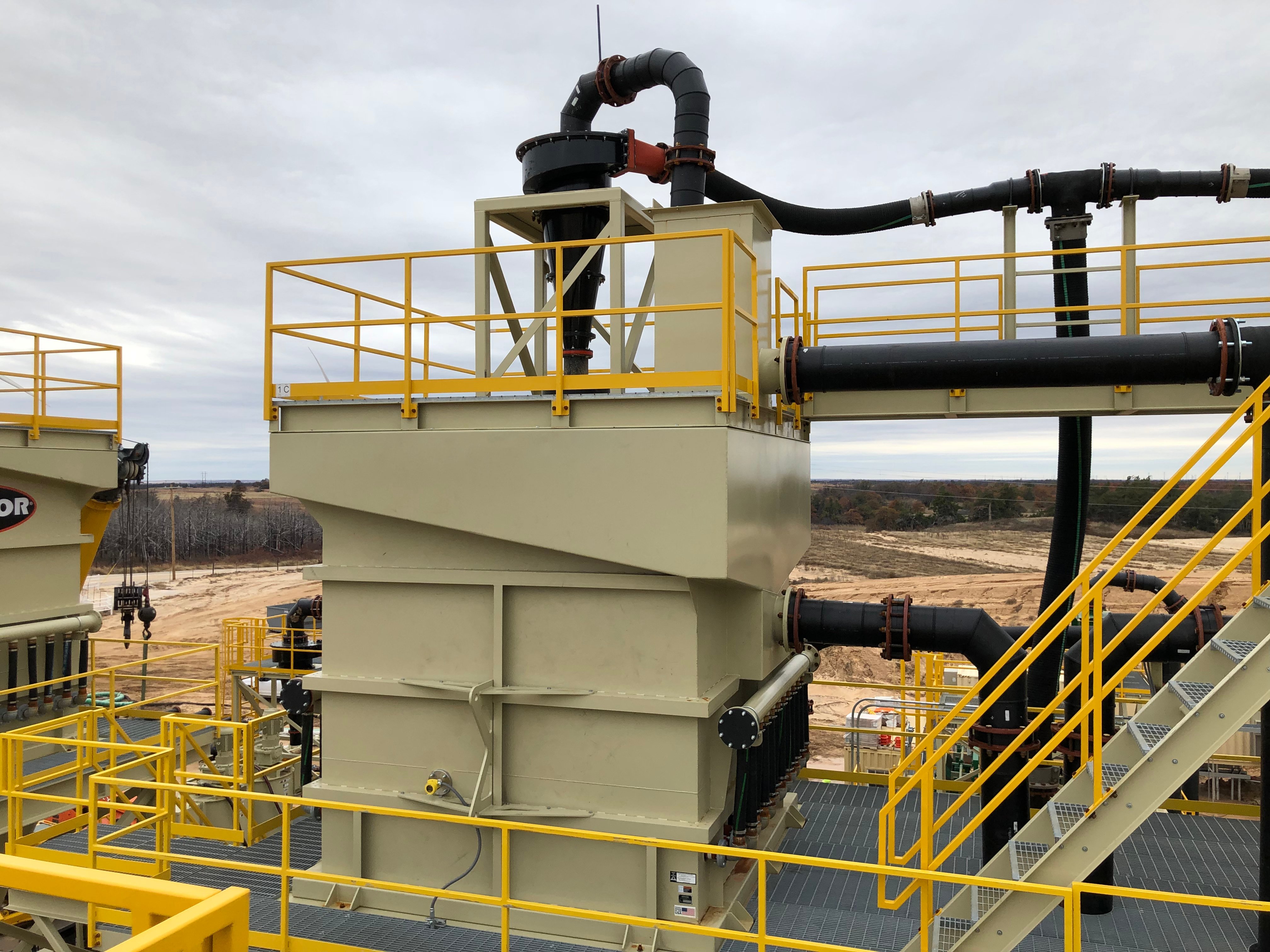

If your screw washer’s leaving too much fine sand in the waste stream, it’s probably time for a cyclone. The Helix Cyclone uses centrifugal force to separate ultra-fines from slurry, helping you recover more sellable product without clogging up your system or slowing things down.

Set it up once, and let it run. The Helix is built for steady performance with minimal operator input. It’s a solid solution for producers who want tighter control of their final gradation, cleaner overflow, and a little less chaos in their wash circuit.

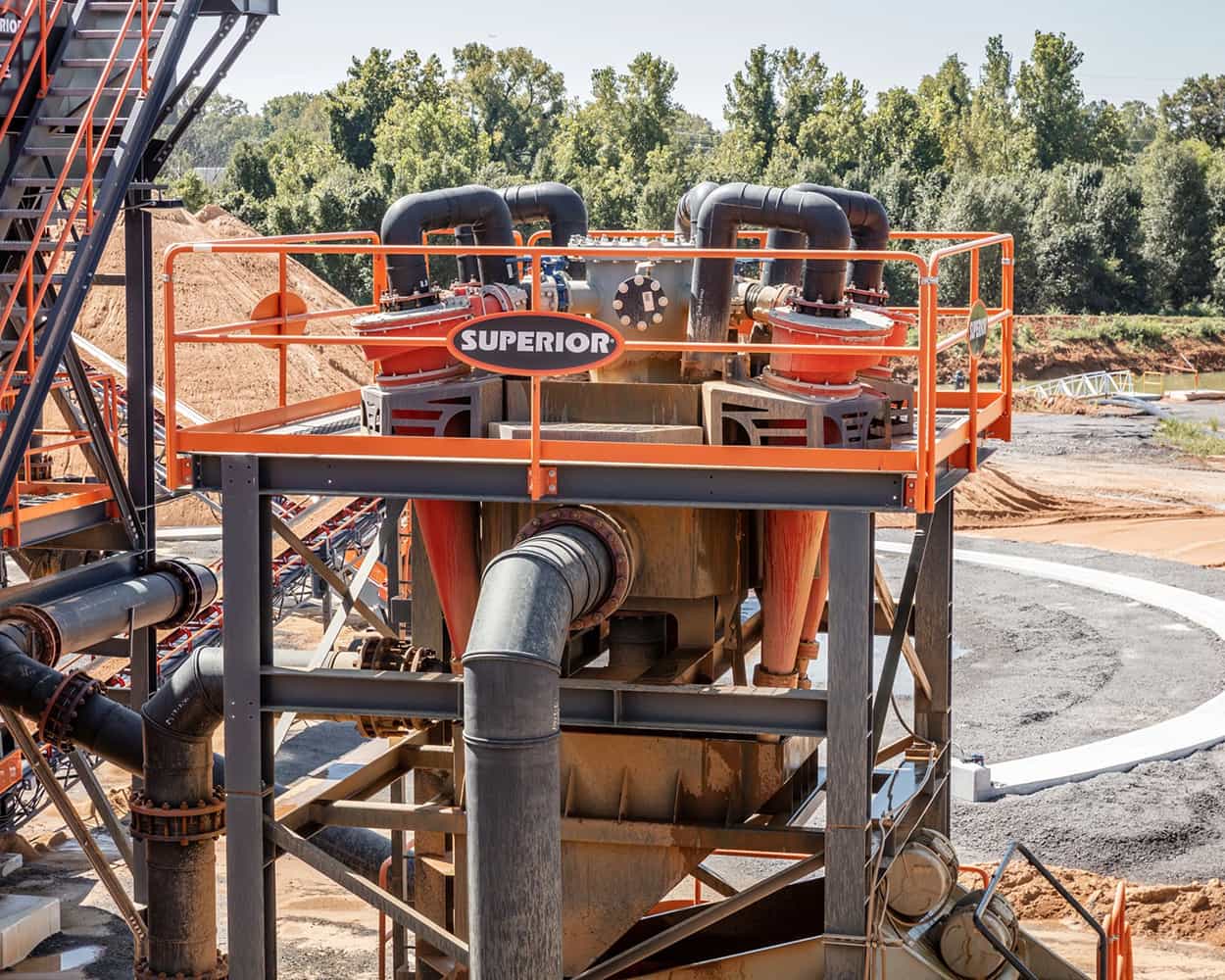

Helix® Cyclones installed as part of large stationary sand wash plant in Tennessee
vertical-divider-white-1
horizontal-divider-white-2

Models

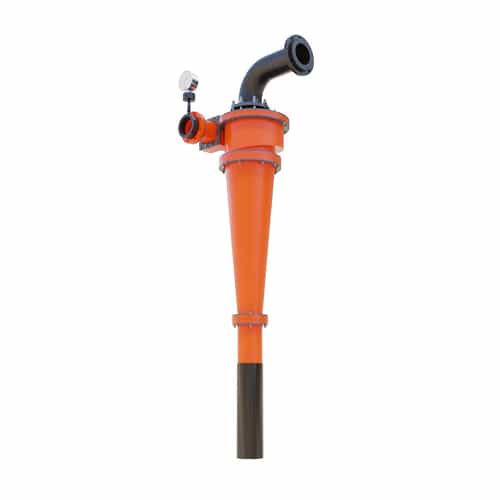

3D rendering of the Helix® cyclone separator designed for ultra-fine particle recovery and slurry classification in mineral processing applications.

Sand Production

Constructed of structural steel with urethane or rubber liners, this model makes precise 200-mesh cuts to remove excess fines and deliver high-quality sand.

3D rendering of the Helix® Cyclone separator designed for ultra-fine particle recovery and slurry classification in mineral and aggregate processing applications.

Fines Recovery

Made entirely of cast urethane for wear resistance, this model targets ultra-fine 400-mesh particles to reclaim material normally lost to the waste stream.

Advantages

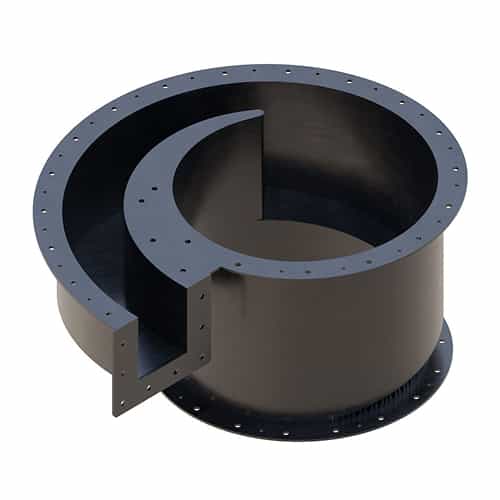

Flow-Stabilizing Inlet

Patented design that reduces turbulence and feed instability for sharper particle separation, lower wear, and longer liner life.

Vortex Finder

Patented flow-control design prevents short-circuiting, reducing coarse carryover into the overflow for more accurate fines recovery.

Field-Cut Apex Nozzle

Adjustable discharge opening allows operators to fine-tune underflow density and cut point on-site, improving recovery efficiency without part replacements.

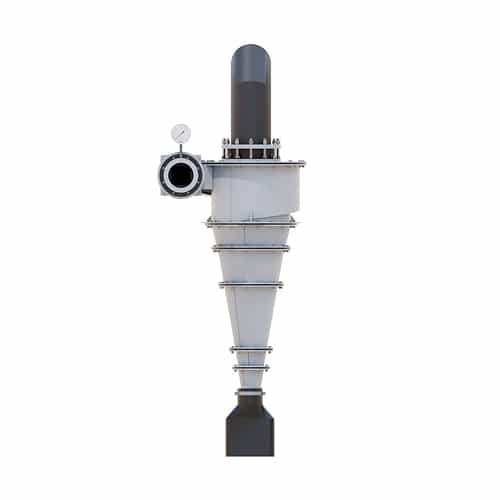

Siphon Assist

Creates a vacuum effect at the apex to increase solids concentration in the underflow, producing a drier discharge and reducing downstream handling.

vertical-divider-dark-gray-2

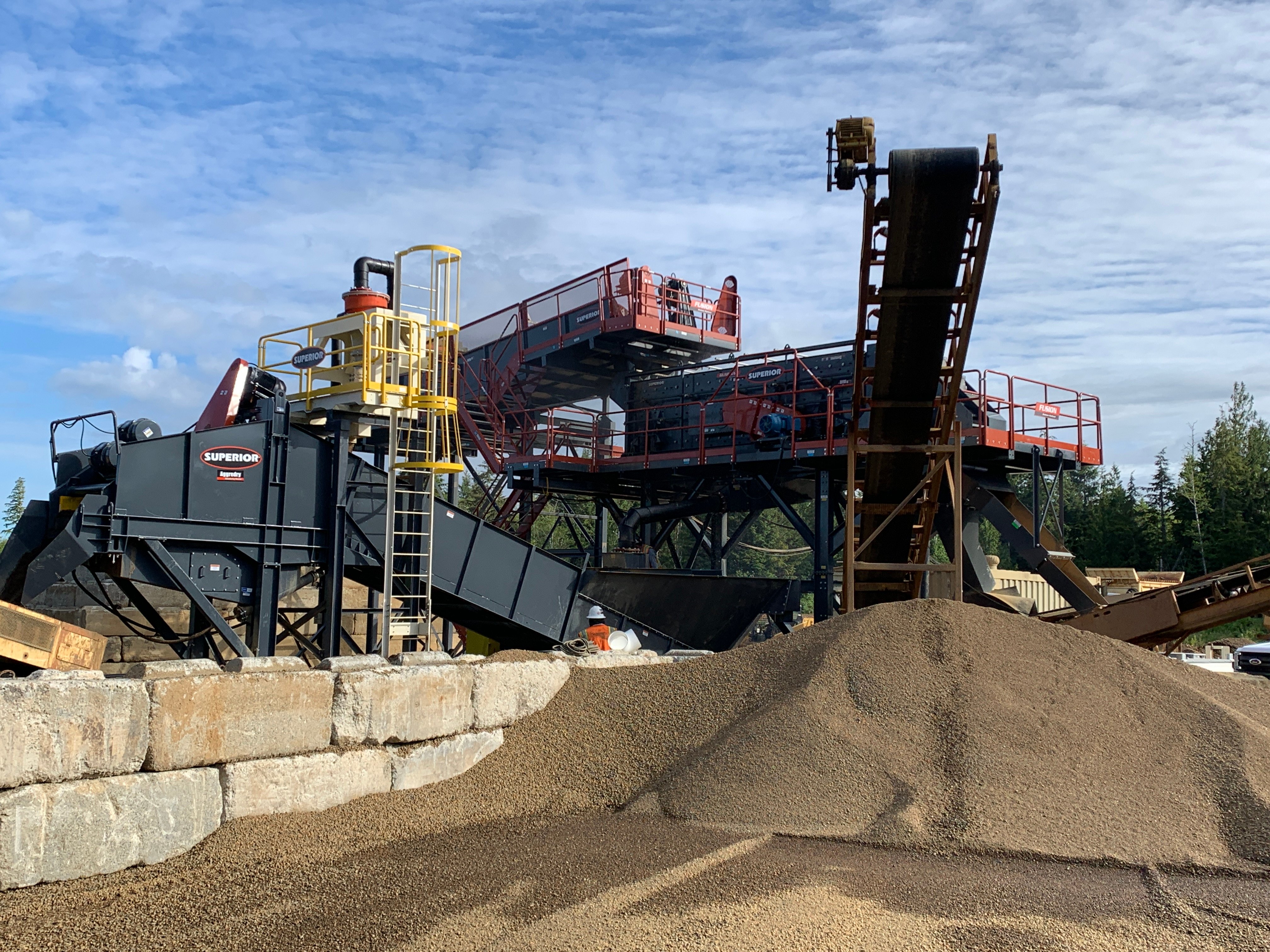

The Spin Behind the Spec

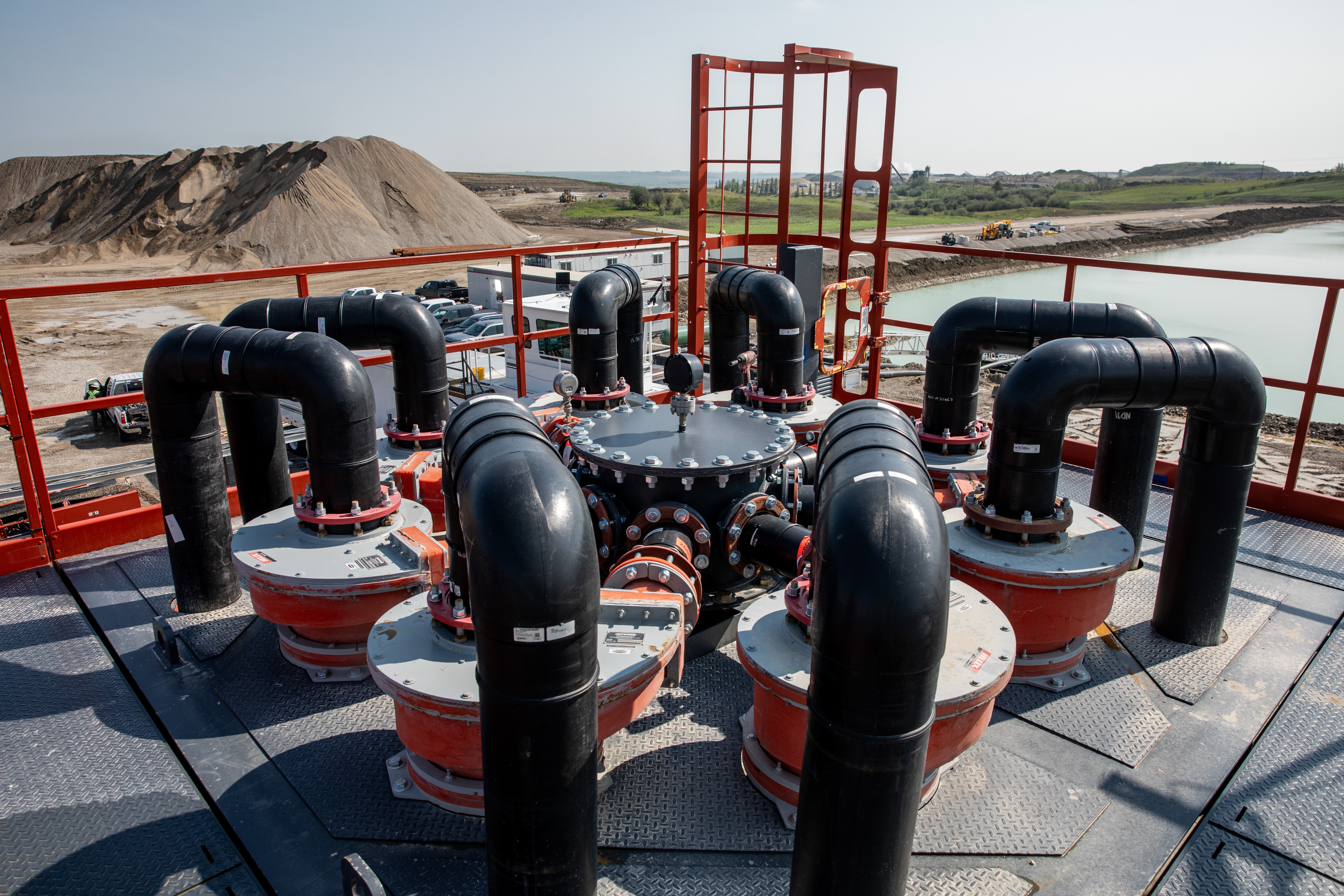

At this Canadian site, precision washing runs through every stage and the Helix Cyclone plays a key role. Integrated into the Fusion Modular Plant, it sharpens separation, boosts recovery, and helps produce multiple spec sands with remarkable efficiency.

With tons-per-hour climbing past 800 and dependable dealer support from Machinery Supply, this portable operation shows how intelligent flow control and proven design turn a temporary setup into a high-performing production site.

Where to Buy

Videos

See how the siphon assist feature boosts performance by maintaining consistent pressure, improving recovery, and reducing bypass.

Helix Models & Specifications

Compare Helix® Cyclone models by diameter, cone angle, operating pressure, flow rate, solids percentage, and feed capacity.

General Specifications

Model Cyclone Diameter Cone Angle Inlet Diameter VF Diameter Inlet Pressure Flow Rate Solids Feed Capacity
in mm deg in mm in mm psi kPa gpm m³/hr % STPH MTPH
Fines Recovery
1210CYC 12 300 10° 4 100 4.6–5.8 110–140 12–25 90–400 400–750 100–180 10% 20 18
1610CYC 16 400 10° 6 150 6–7.6 150–190 12–25 90–800 800–1,100 190–250 10% 30 27
Sand Production
1220CYC 12 300 20° 4 100 4.6–6 110–140 10–20 70–140 400–700 100–160 20% 40 36
1630CYC 16 400 30° 6 150 6.0–8 150–190 10–20 70–140 700–1,100 160–250 25% 80 73
2030CYC 20 500 30° 6 150 7.5–9 190–230 10–20 70–140 800–1,400 190–320 25% 100 91
2430CYC 24 600 30° 8 200 8.9–11 220–280 10–20 70–140 1,400–2,000 320–460 25% 150 137
3030CYC 30 760 30° 10 250 11.2–14 280–350 10–20 70–140 2,200–3,400 500–780 25% 250 228

Helix® Cyclone specifications vary by model and application. Fines recovery and sand production configurations have different operating requirements and capacities. Actual performance depends on feed material, solids concentration, and operating conditions. Consult Superior for application-specific recommendations.
